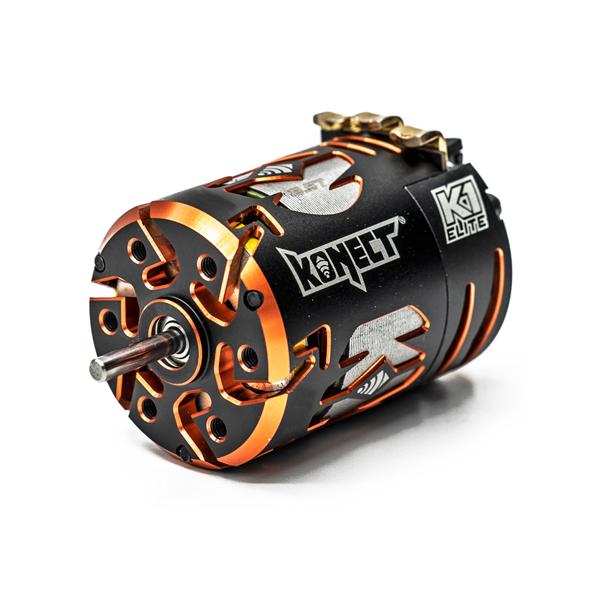

Konect K1 Elite 7.5t Modified Brushless Race Motor

Konect K1 Elite 7.5t Modified Brushless Race Motor

KN-K11901004

KONECT-RC

  • £75.00


Konect K1 Elite motor technical features :

BRCA AND EFRA LEGAL

The new and unique stator design of the K1 ELITE motor is optimized to provide strong torque and high RPM.

New stator coating for better heat dissipation and long term surface corrosion resistance.

Accurately mounted sensors for the best possible KV and RPM.

CNC Machined Billet T6 Aluminum Heatsink Can

High Purity Copper Windings Maximizes Conductivity

Adjustable Timing, Dual sensor port

Konect K1 Elite motor specification :

Size : 540

Type : Modified

Length : 53.9 mm

Diameter : 35.8 mm

Rotor diameter : 3.175 mm

Turns number : 7.5

Rotor poles : 2

KV : 4500

Lipo : 1-2 S

Max Amp : 86 A

IO (7.4V) : 5.8 A

Resistance : 0.0073 ohms

Watts : 360 W

Weight : 166g
