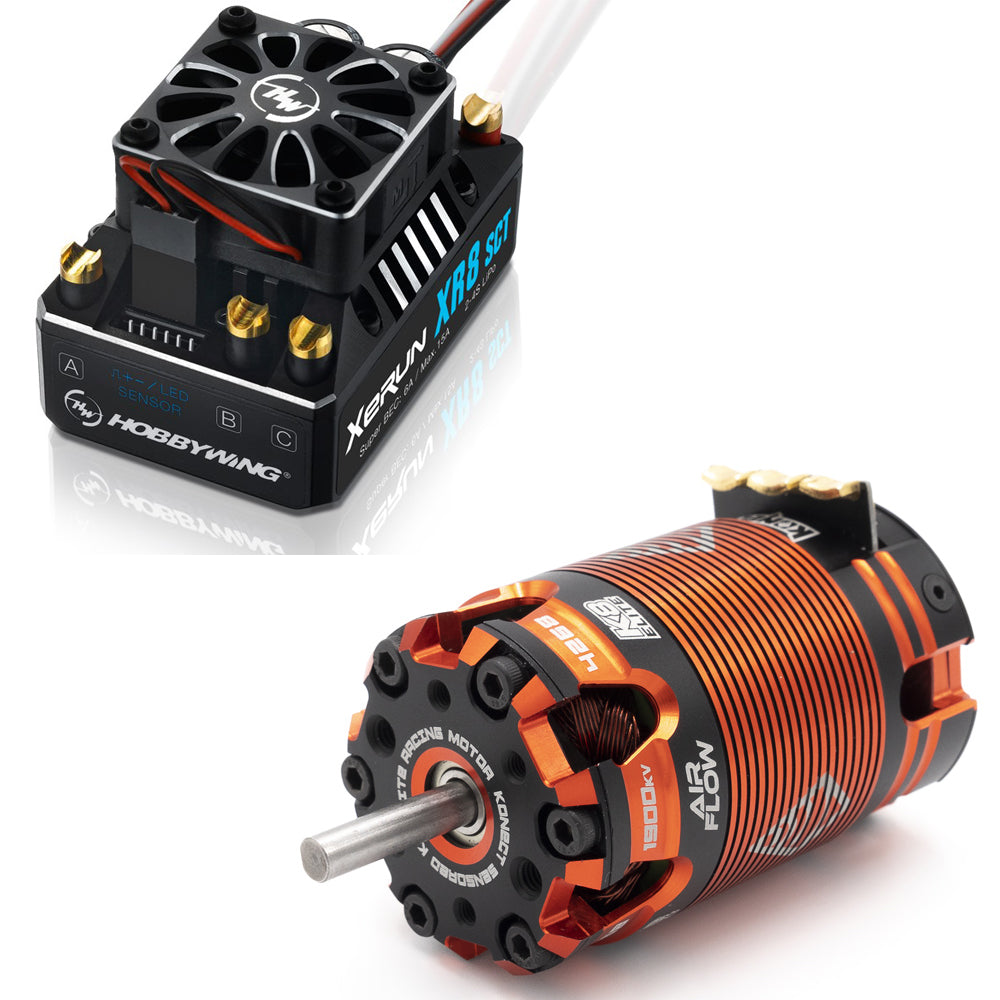

HobbyWing XR8 SCT 140amp and KONECT K8 ELITE 2100kv 4268 COMBO
KN-SMD-2100KVHobby Wing XR8 SCT 140amp and Konect 2100kv 4268 motor make a perfect and economic combo for use in 1/8th scale electric vehicles.

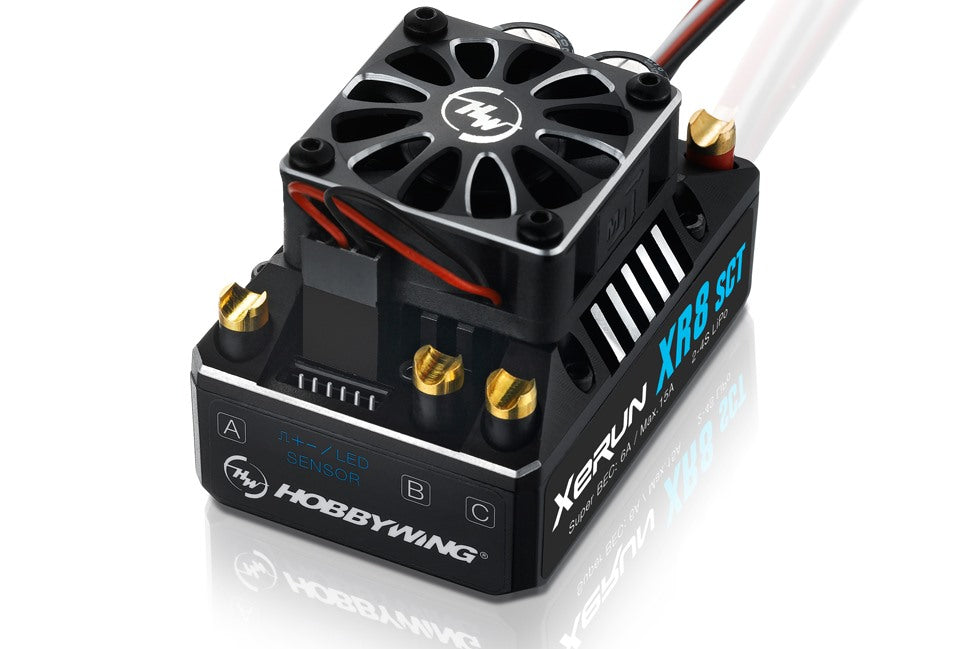

Hobbywing XeRun XR8 SCT ESC Features:
- Full-sensored Mode Supported
- Turbo Timing Technology
- Small & Light Structure Design
- Coasting
- Programming / Upgrading / Data reading wirelessly
- Capacitor Thermal Protection
- High Voltage Built-in BEC
- Advanced and Secure Electronic Switch
- Ultra-Reliable Cooling System
- Wide applicability
Spec Check:
- Scale: 1/8th & 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: No
- Cont./Peak Current: 140A/880A
- Input Voltage: 2-4S Lipo/6-12 Cell NiMH
- BEC Output: Switch Mode: 6V/7.4V,6A
- Input Wires: Red-12AWG-200mm*1/Black--12AWG-200mm*1
- Output Wires: Blue -12AWG-200mm*1, Yellow-12AWG-200mm*1, Orange -12AWG-200mm*1
- Input Connectors: No
- Output Connectors: No
- Fan Size: 30x30x10mm
- Voltage Range: 5-7.4V
- LCD Program Box: Supported
- WiFi Module: Supported
- Firmware Upgrade: Supported
- Size: 54.1x37.2x36.1mm
- Weight: 90.5g

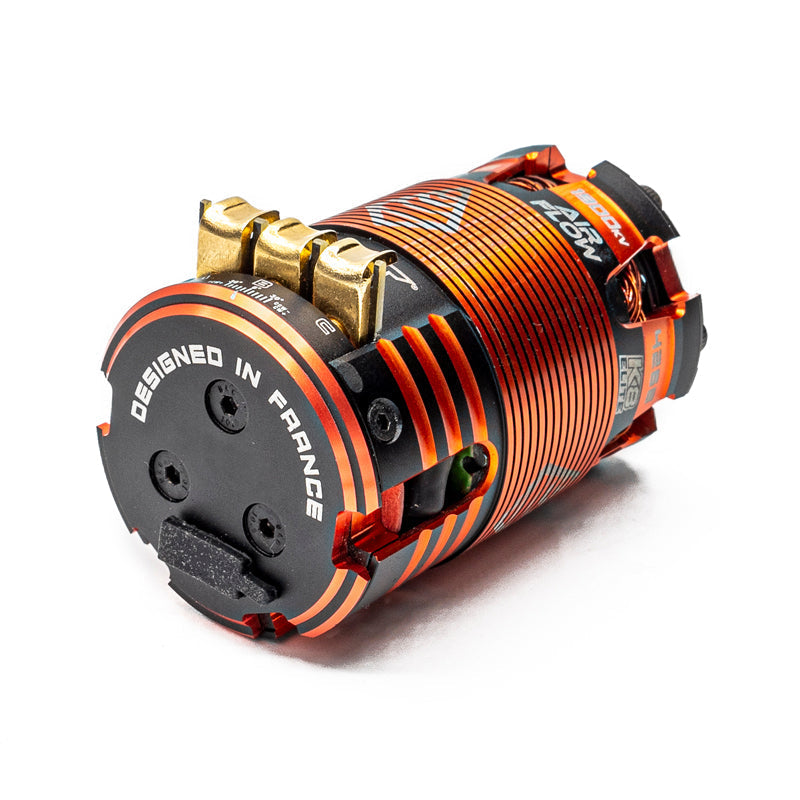

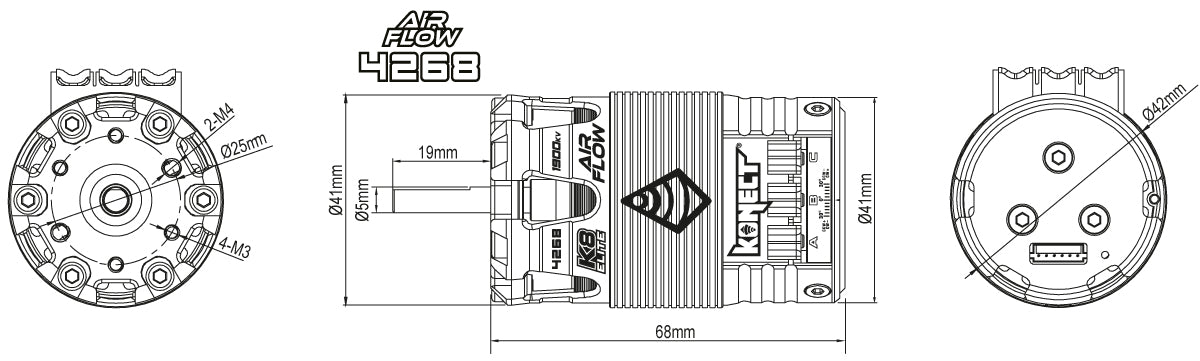

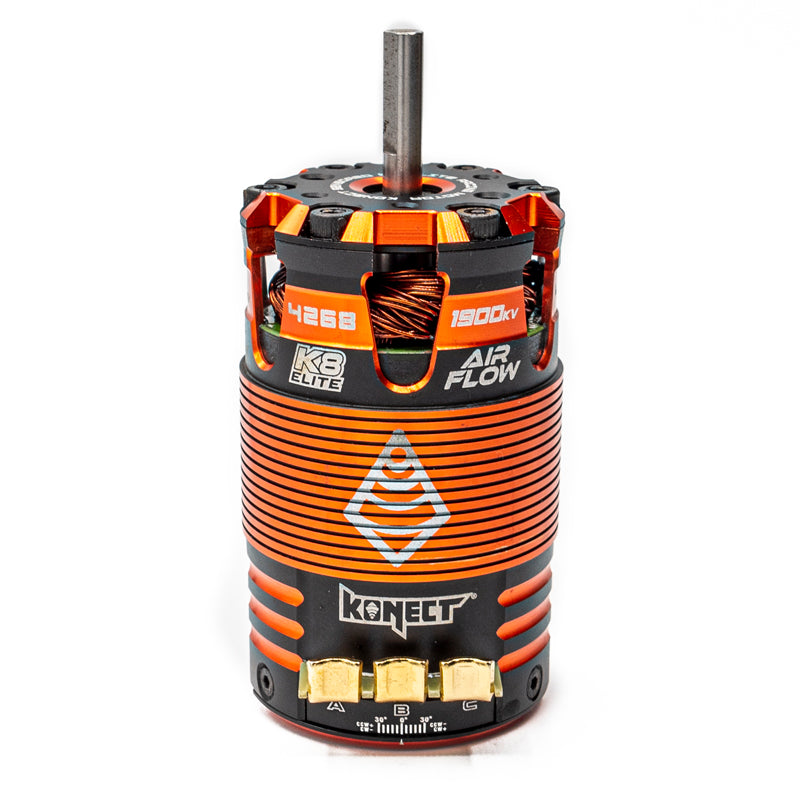

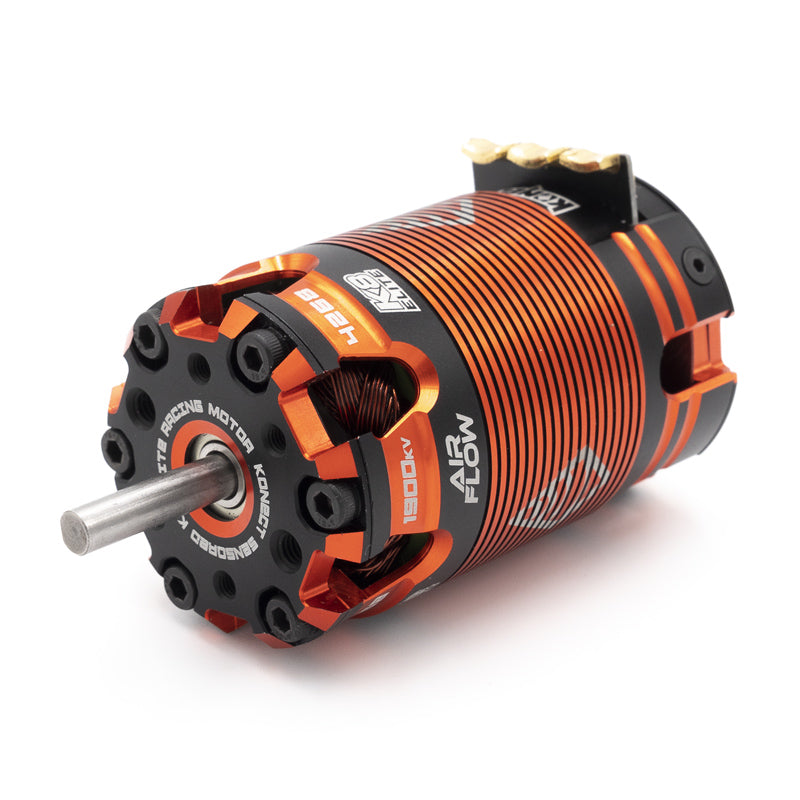

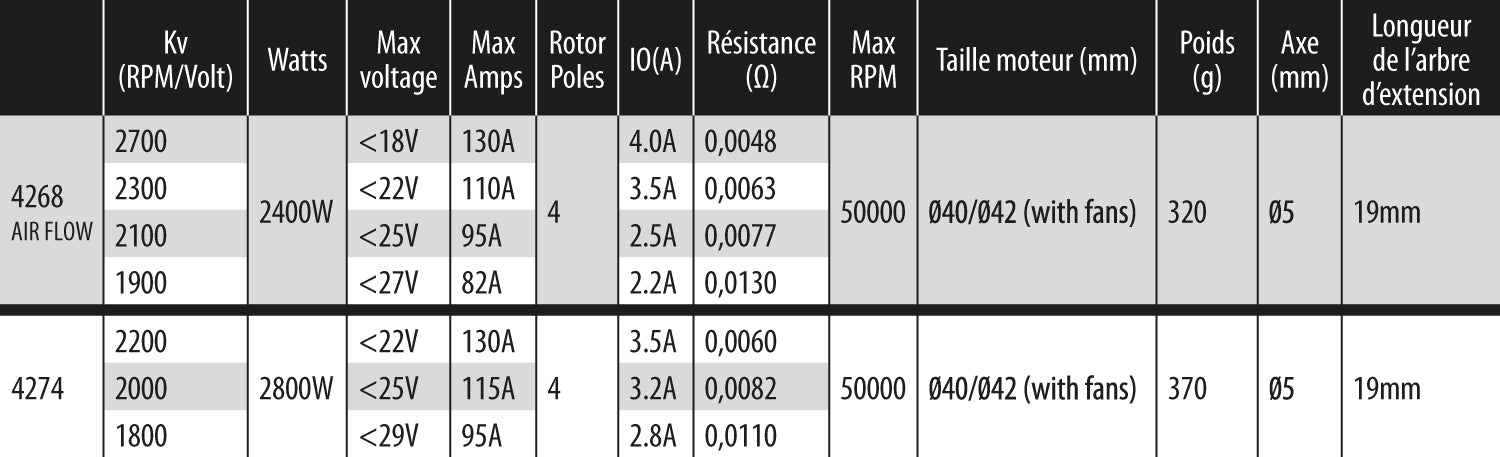

KONECT K8 Elite Spec:
- Sensored competition brushless motor for 1/8th Buggy and track.
- Very torquey 12-slot 4-pole motor, designed in France
- CNC machined 6061 T6 special cooling aluminum body
- Universal fixing with M3 and M4 screws
- ABEC5 class high speed bearings
- Stator - super thin laminations (0.2mm)
- Use of high purity copper for the windings to maximize efficiency
- Very precise balancing of the rotor for a gain in flexibility and in speed of rotation
- Designed and developed to obtain the best performance
- Removable and replaceable rotor
- LEGAL EFRA, IFMAR, ROAR and BRCA
