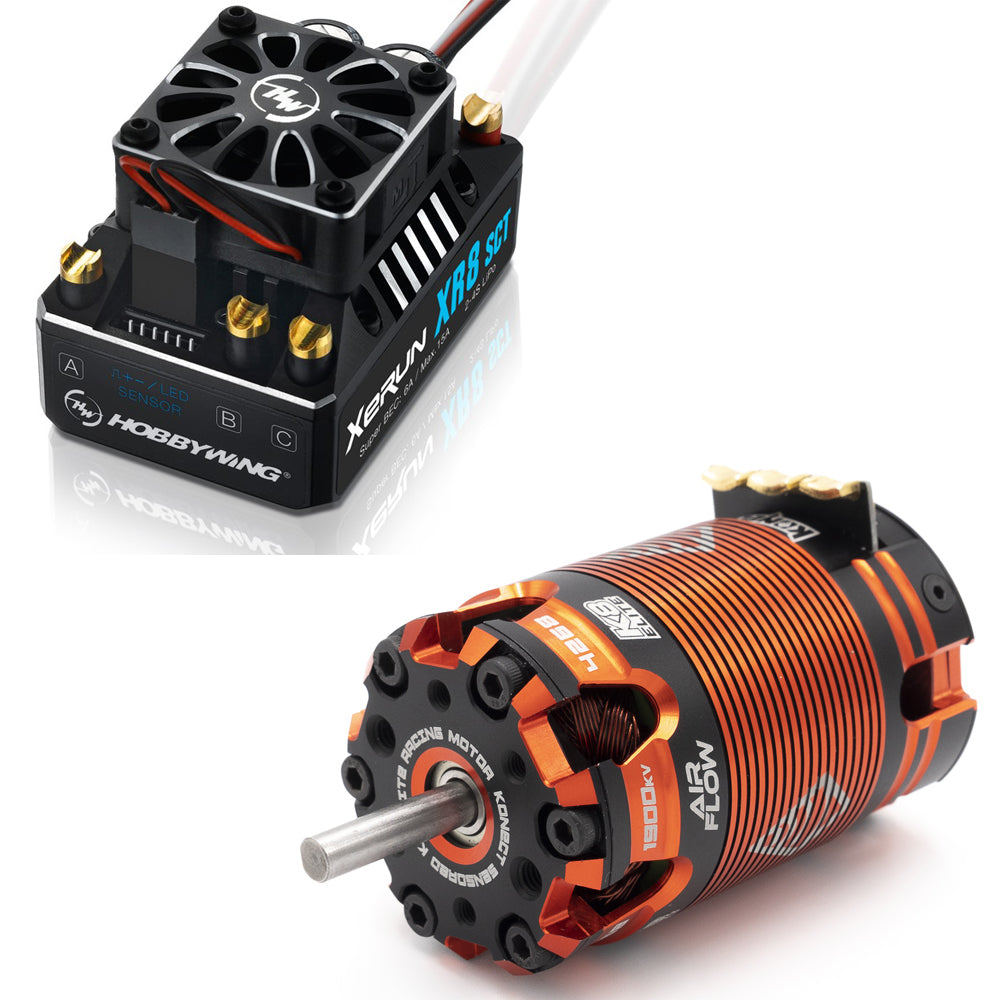

HobbyWing XR8 SCT 140amp and KONECT K8 ELITE 1900kv 4268 COMBO

KN-SMD-1900KV

KONECT-RC

  • £150.00


Hobby Wing XR8 SCT 140amp and Konect 1900kv 4268 motor make a perfect and economic combo for use in 1/8th scale electric vehicles.

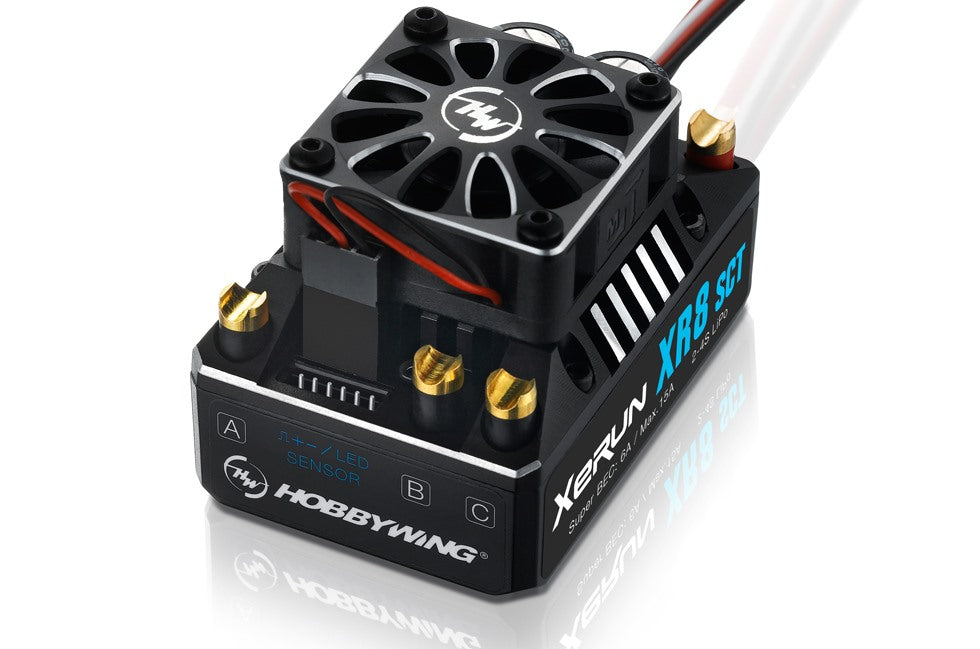

Hobbywing XeRun XR8 SCT ESC Features:

  • Full-sensored Mode Supported
  • Turbo Timing Technology
  • Small & Light Structure Design
  • Coasting
  • Programming / Upgrading / Data reading wirelessly
  • Capacitor Thermal Protection
  • High Voltage Built-in BEC
  • Advanced and Secure Electronic Switch
  • Ultra-Reliable Cooling System
  • Wide applicability


Spec Check:

  • Scale: 1/8th & 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensored
  • Waterproof: No
  • Cont./Peak Current: 140A/880A
  • Input Voltage: 2-4S Lipo/6-12 Cell NiMH
  • BEC Output: Switch Mode: 6V/7.4V,6A
  • Input Wires: Red-12AWG-200mm*1/Black--12AWG-200mm*1
  • Output Wires: Blue -12AWG-200mm*1, Yellow-12AWG-200mm*1, Orange -12AWG-200mm*1
  • Input Connectors: No
  • Output Connectors: No
  • Fan Size: 30x30x10mm
  • Voltage Range: 5-7.4V
  • LCD Program Box: Supported
  • WiFi Module: Supported
  • Firmware Upgrade: Supported
  • Size: 54.1x37.2x36.1mm
  • Weight: 90.5g

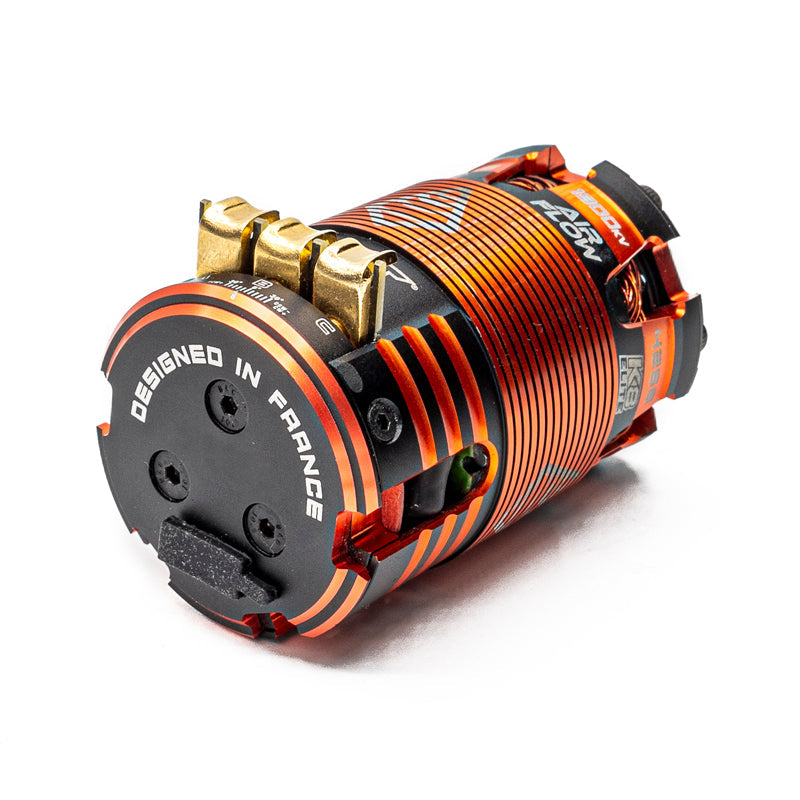

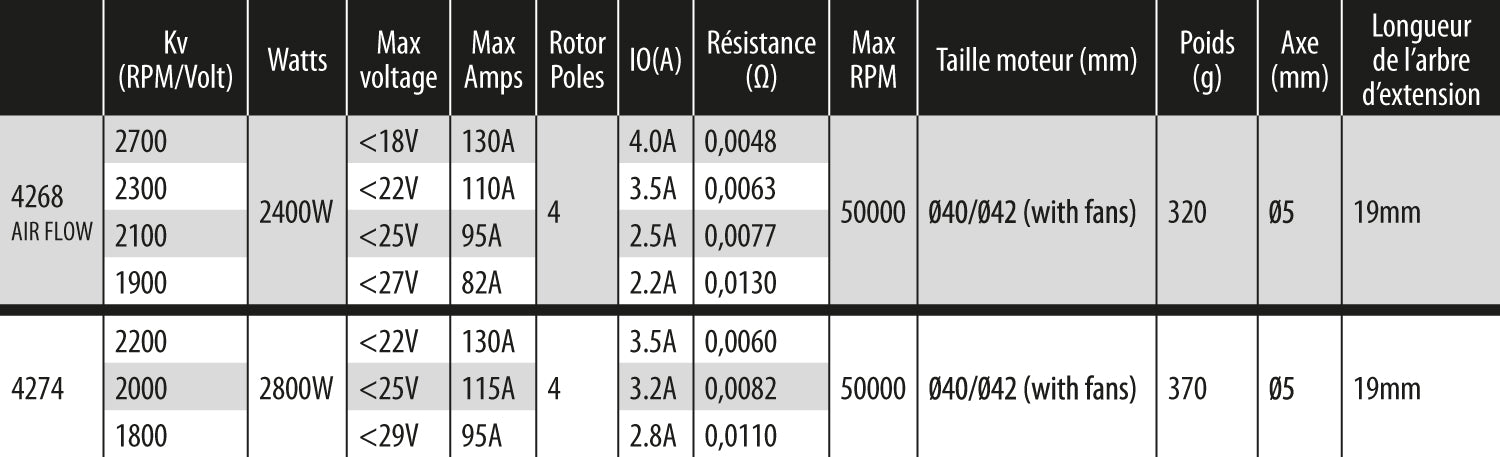

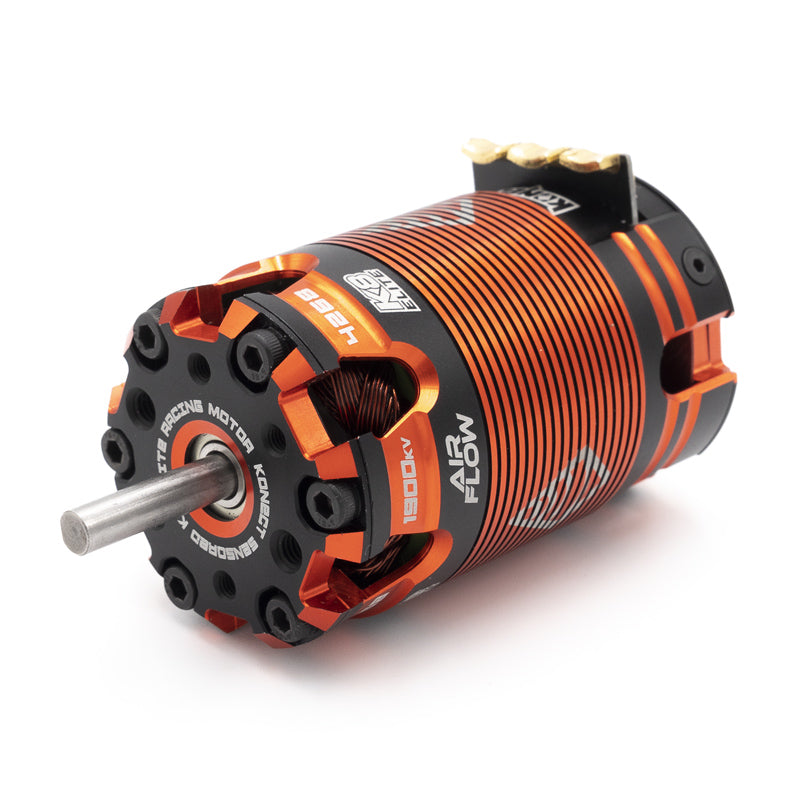

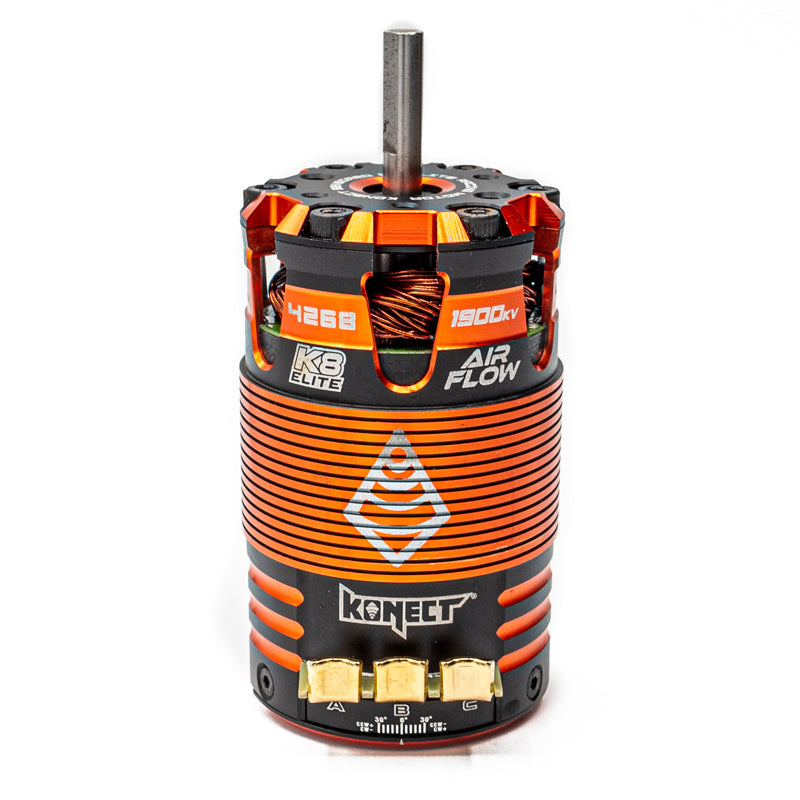

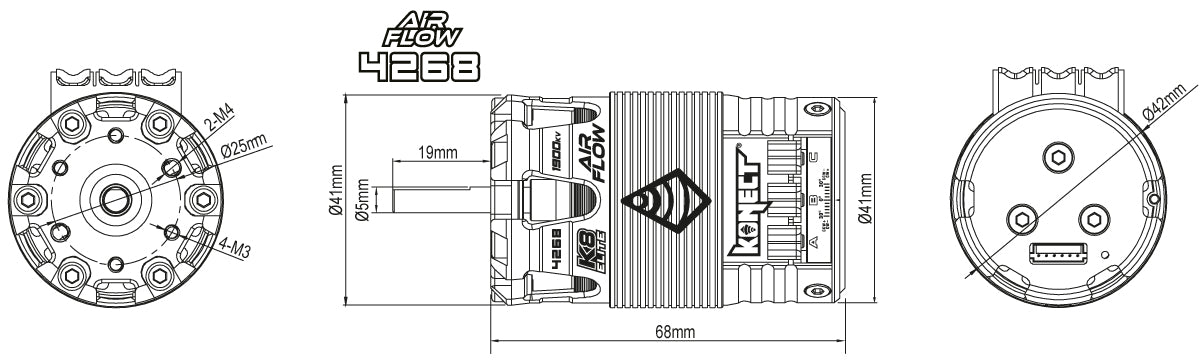

KONECT K8 Elite Spec:

  • Sensored competition brushless motor for 1/8th Buggy and track.
  • Very torquey 12-slot 4-pole motor, designed in France
  • CNC machined 6061 T6 special cooling aluminum body
  • Universal fixing with M3 and M4 screws
  • ABEC5 class high speed bearings
  • Stator - super thin laminations (0.2mm)
  • Use of high purity copper for the windings to maximize efficiency
  • Very precise balancing of the rotor for a gain in flexibility and in speed of rotation
  • Designed and developed to obtain the best performance
  • Removable and replaceable rotor
  • LEGAL EFRA, IFMAR, ROAR and BRCA
