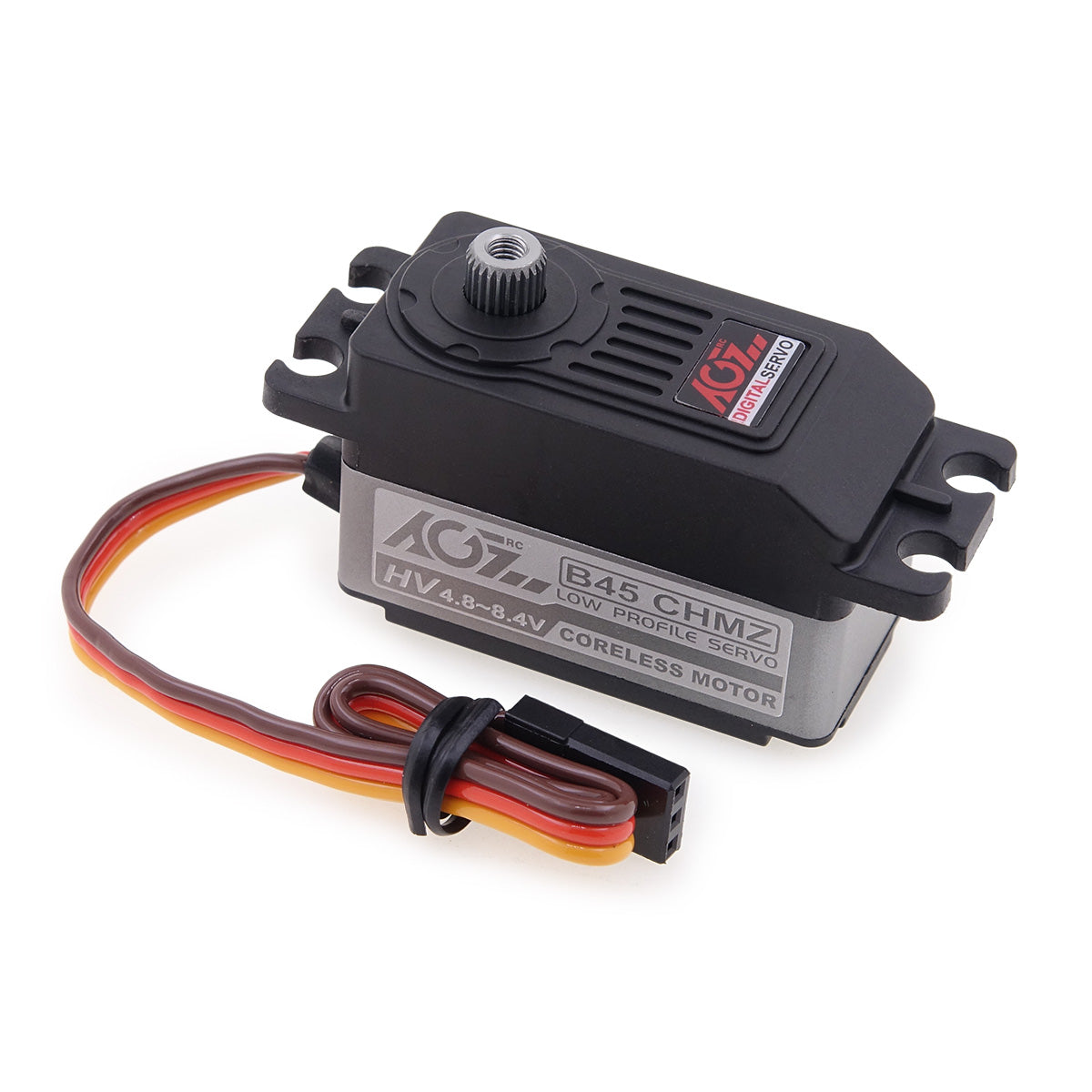

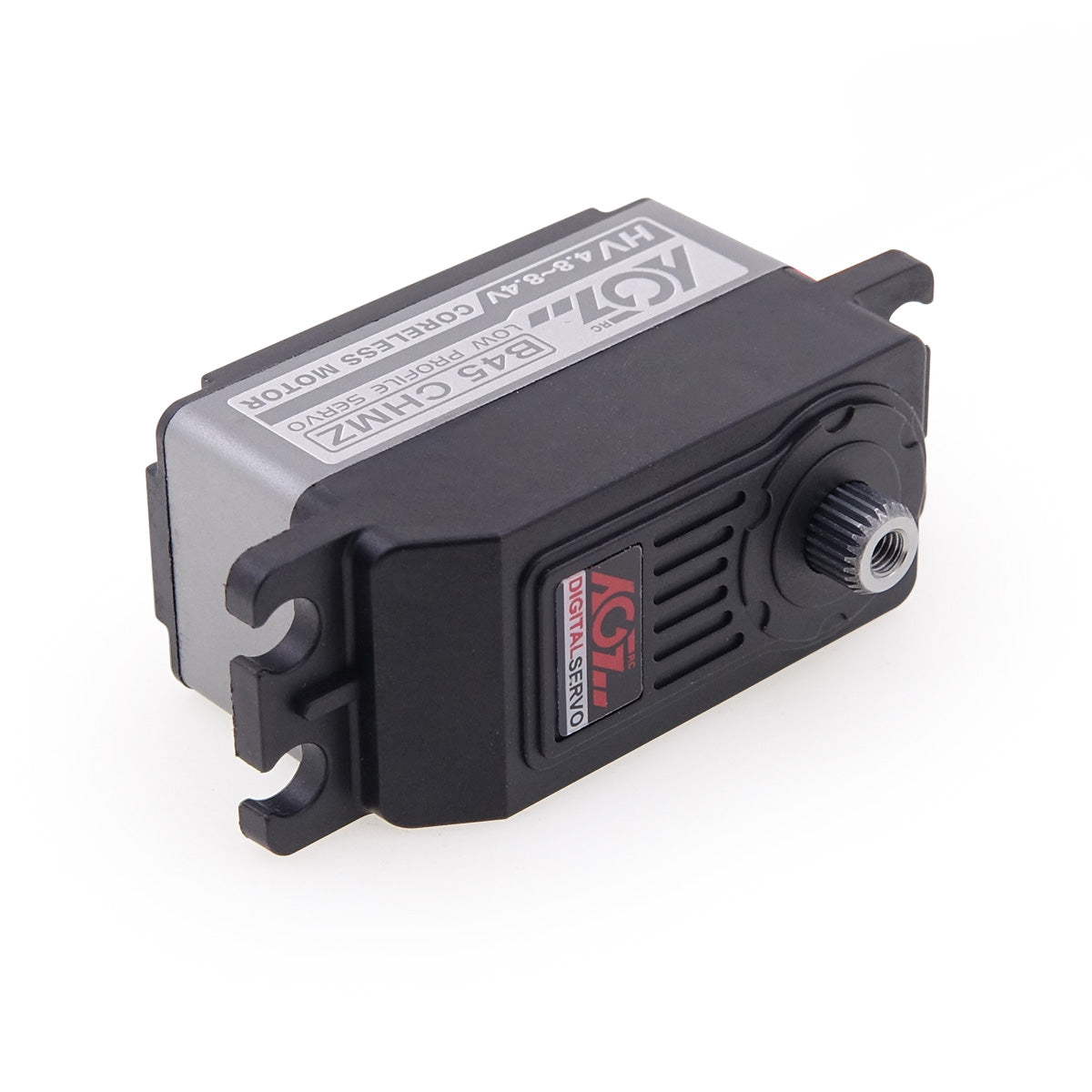

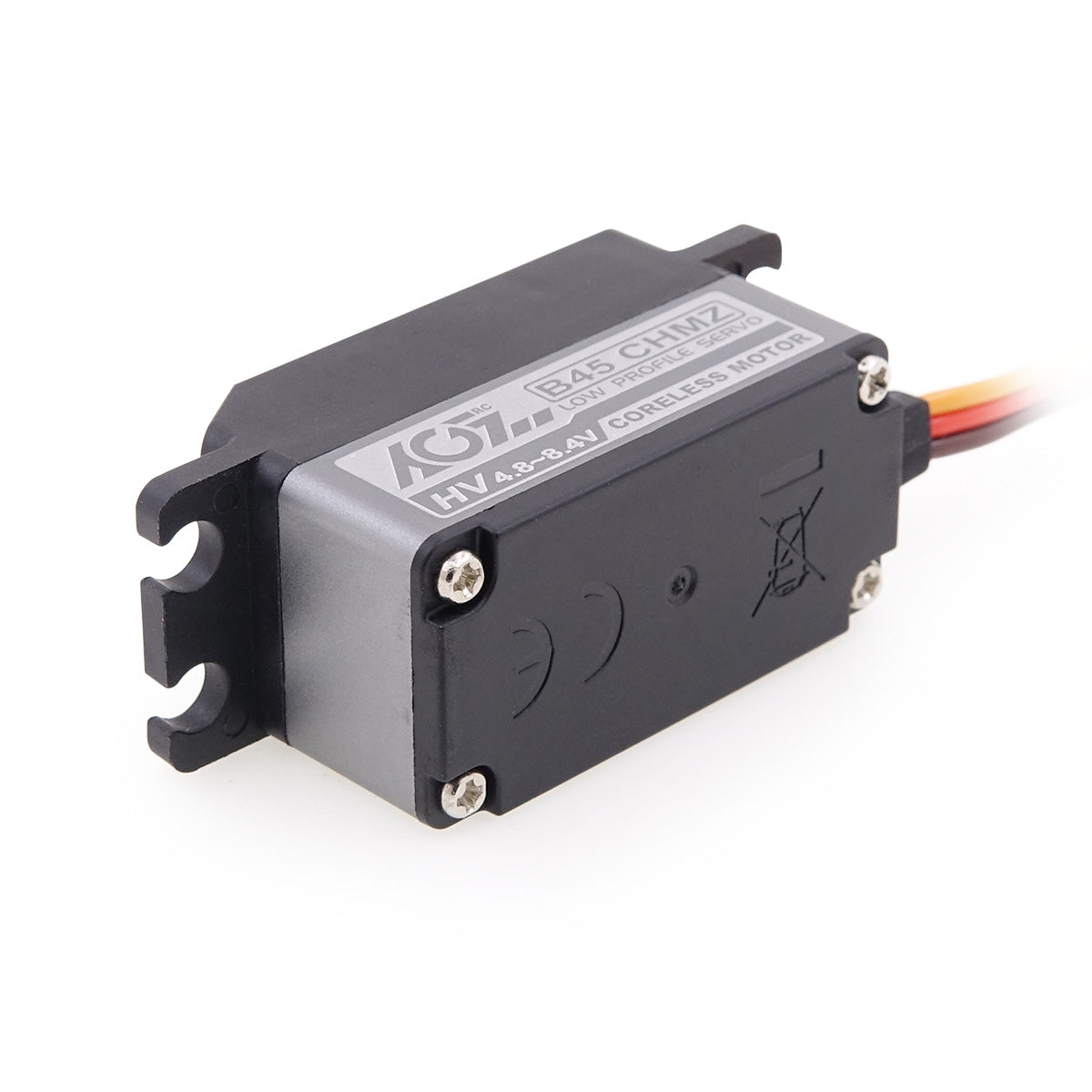

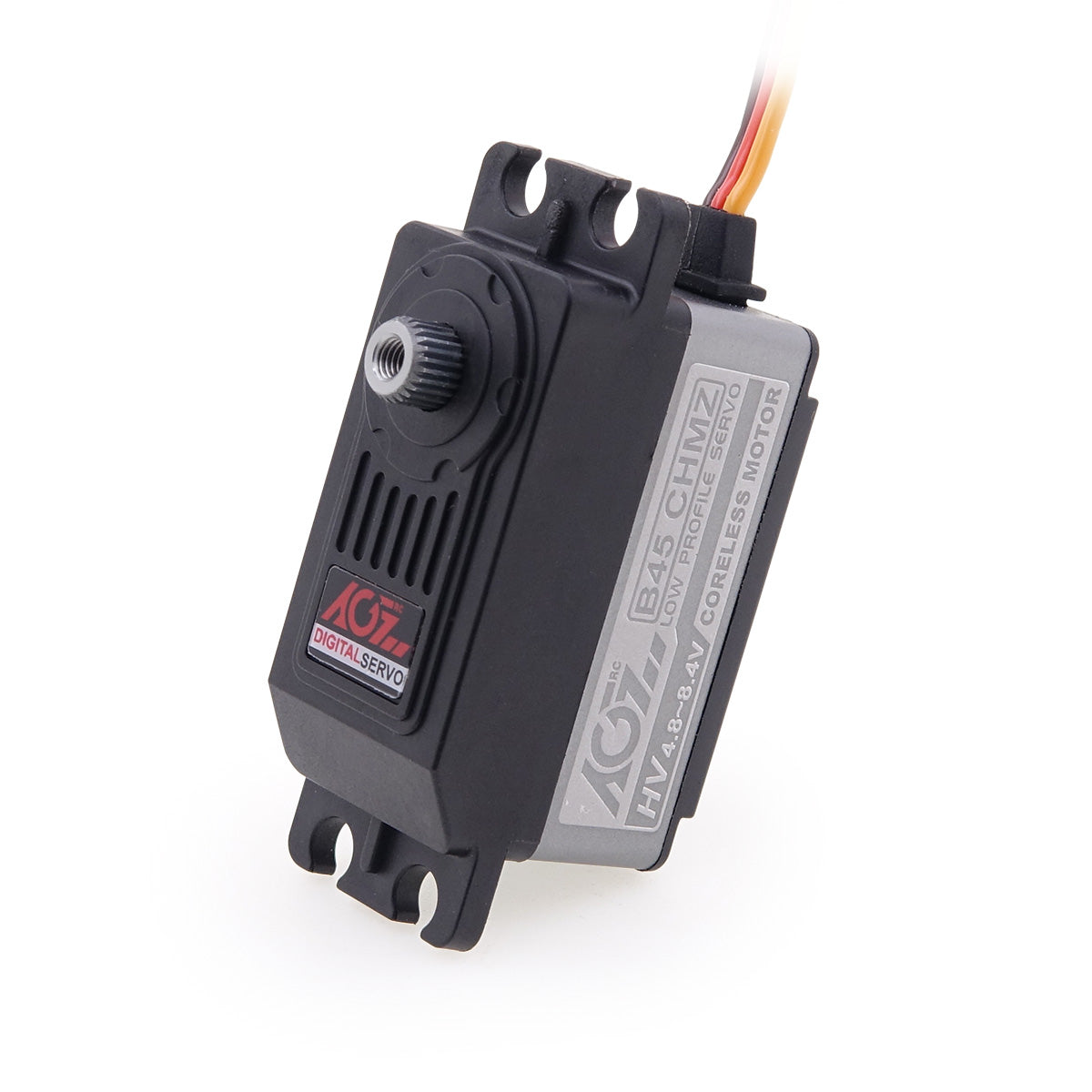

AGF-RC B45CHMZ 14KG 0.085Sec Low Pro CL Competition Servo



  • £31.95

AGF-RC B45CHMZ 14KG 0.085Sec Low Pro CL Competition Servo

Product Description

The B45CHMZ low profile servo is a high-performance and affordable practical servo that is within the budget range that most customers can accept. We still use 8.4V strong voltage drive for it, the maximum torque can reach 14KG and the fast speed of 0.086Sec. Its shell is composed of plastic and CNC shell, and the shell is grey and highly recognizable. The thin and light body allows it to accommodate many models. In the internal structure of the servo, the high-quality coreless motor can work closely with the high-precision titanium gear and operate in an orderly manner.


  • High Performance Low Profile Digital Servo
  • High Precision Titanium Gear
  • High Efficiency Coreless Motor
  • Super Fast Response
  • Smooth Dual Ball Bearing
  • Aluminium Middle Case
  • Ideal for 1/10, 1/12 Drift Racing Car, Touring Car, Boat, Aircraft, Robot etc.


  • B45CHMZ
  • Operating Voltage: 4.8-8.4 V
  • Operating speed: 0.105sec/60°@ 6.0v
  • Operating speed: 0.095sec/60°@ 7.4V
  • Operating speed: 0.085sec/60°@ 8.4V
  • Stall Torque: 11 (153 oz-in ) @ 6.0V
  • Stall Torque: 13 (180 oz-in ) @ 7.4V
  • Stall Torque: 14 (195 oz-in ) @ 8.4V
  • Gear: Titanium
  • Motor: Coreless
  • Size: 40.8*20.2*26.1mm (1.60 x 0.79 x 1.02 in)
  • Weight: 45g
  • Connector Wire: JR 180 mm
