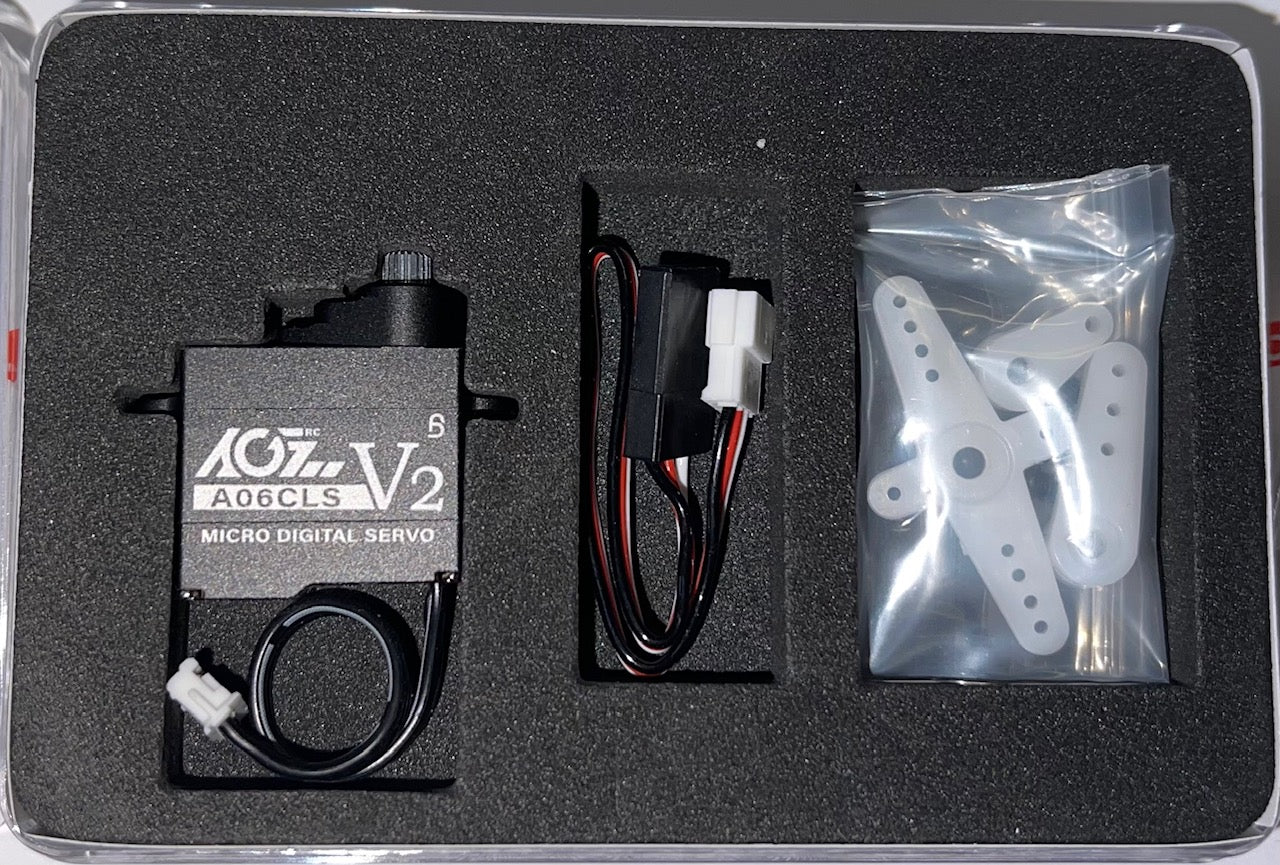

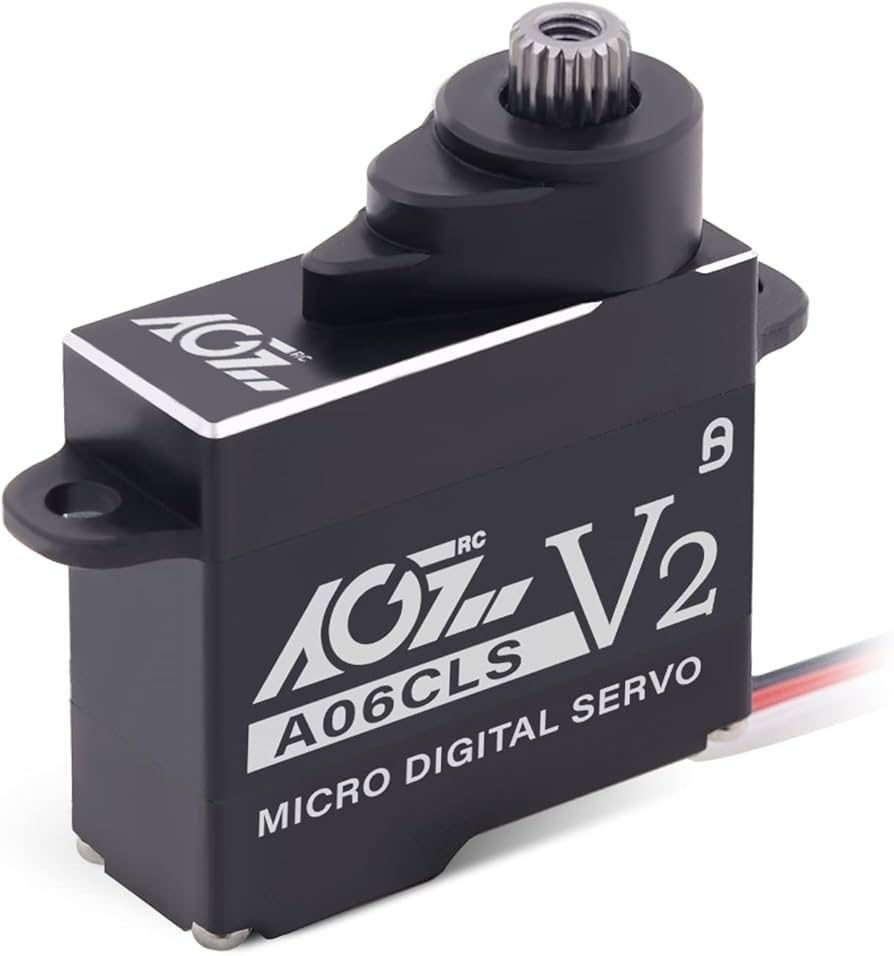

AGF-RC A06CLS V2 0.052-60 deg 3.0kg

AGF-RC A06CLS V2 0.052-60 deg 3.0kg

Very small servo suitable for 1/28th RC car or similar.

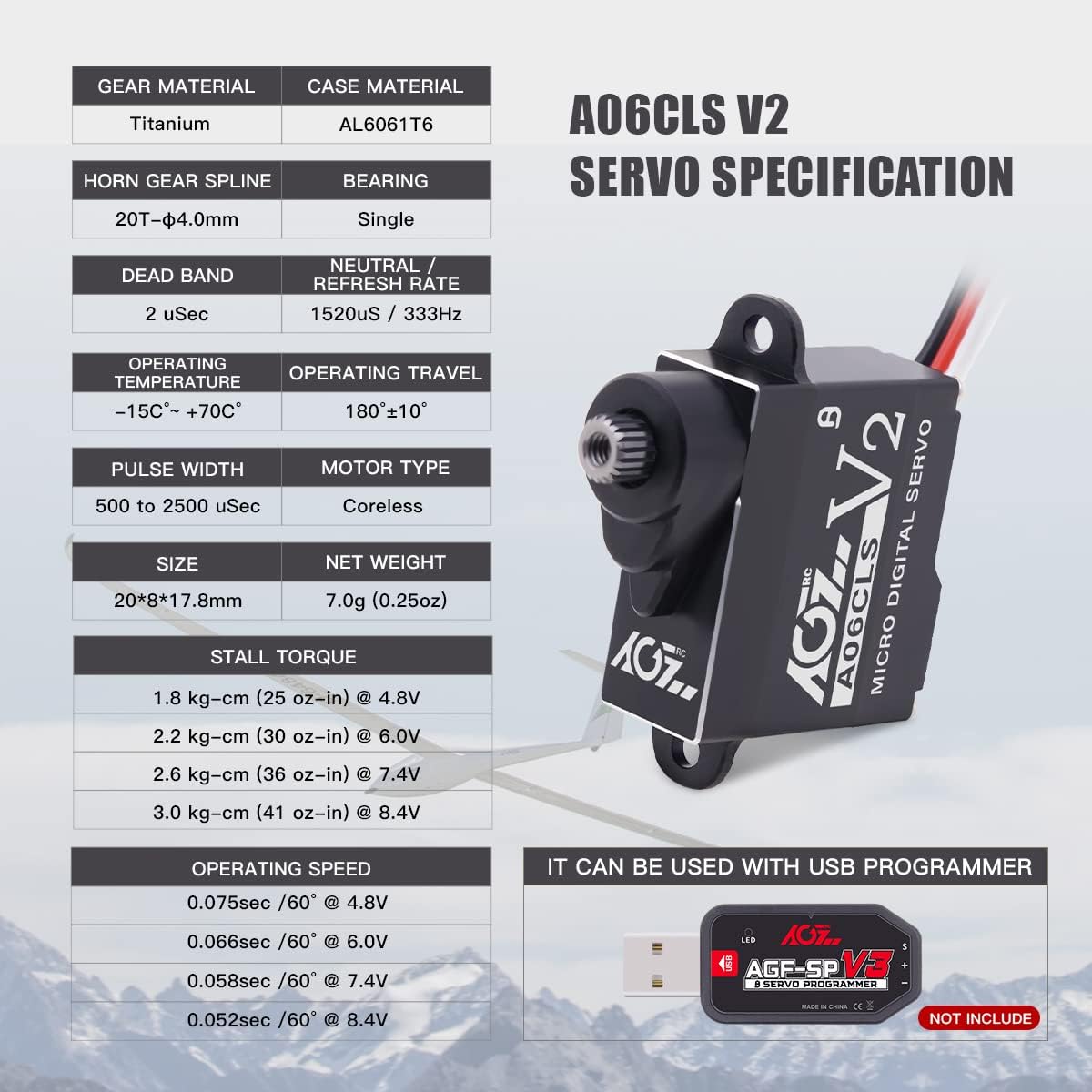

Servo Type    Digital
Gear Type    Metal (Titanium)
Motor Type    Coreless

Stall Torque
1.8Kg-cm (24.9 oz-in) @4.8V

2.2Kg-cm (30.5 oz-in) @6.0V

2.6Kg-cm (36.1 oz-in) @7.2V

3.0Kg-cm (41 oz-in) @8.4V
Speed

0.075sec/60°@4.8V

0.066sec/60°@6.0V

0.058sec/60°@7.2V

0.052sec/60°@8.4V

Output Spline    4mm, 20T
Voltage Range    4.8 - 8.4v (2s LiPo)
Dimensions    20 x 8 x 17.8mm
Weight    7g
