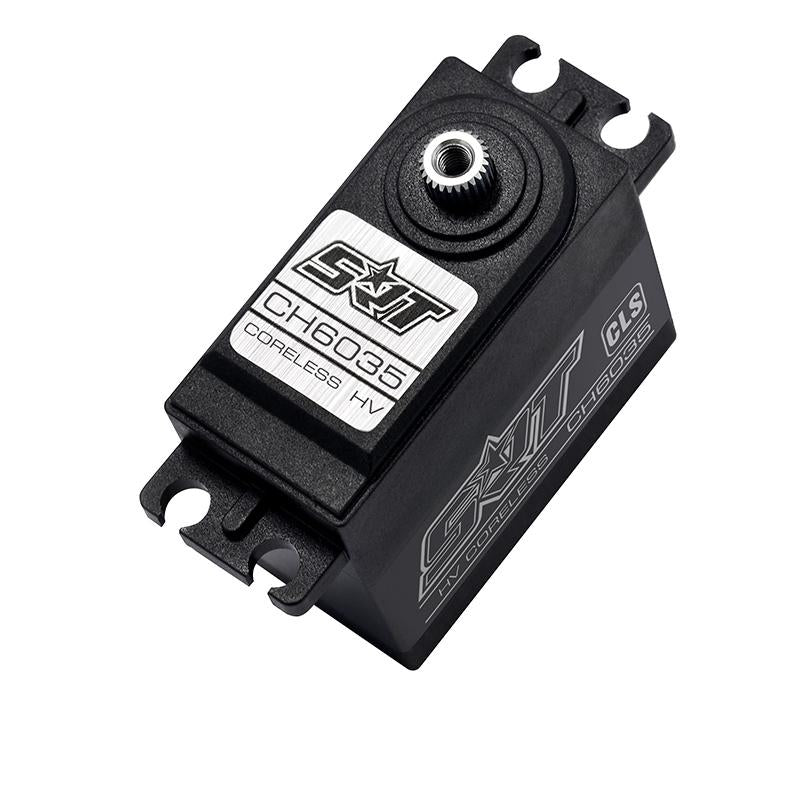

SRT CH6035 HV CL Servo 30.0KG - 0,16 sec at 6v - Semi M-Case

SRT CH6035 HV CL Servo 30.0KG - 0,16 sec at 6v - Semi M-Case

SRT-CH6035

DISCONTINUED

  • £55.00


KEY FEATURES

  • Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
  • incredible efficiency and low power consumption
  • 2 μsec Dead Band
  • 1-Year Limited Warranty

PRODUCT SPECIFICATIONS

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.16 sec/60 degrees at no load
  • operating speed (7.4v): 0.15 sec/60 degrees at no load
  • operating speed (8.4v): 0.14 sec/60 degrees at no load
  • stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
  • stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
  • stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
  • weight: 75.0g (2.65 oz)
  • connector wire length: jr 250 mm
